Omni Cargo

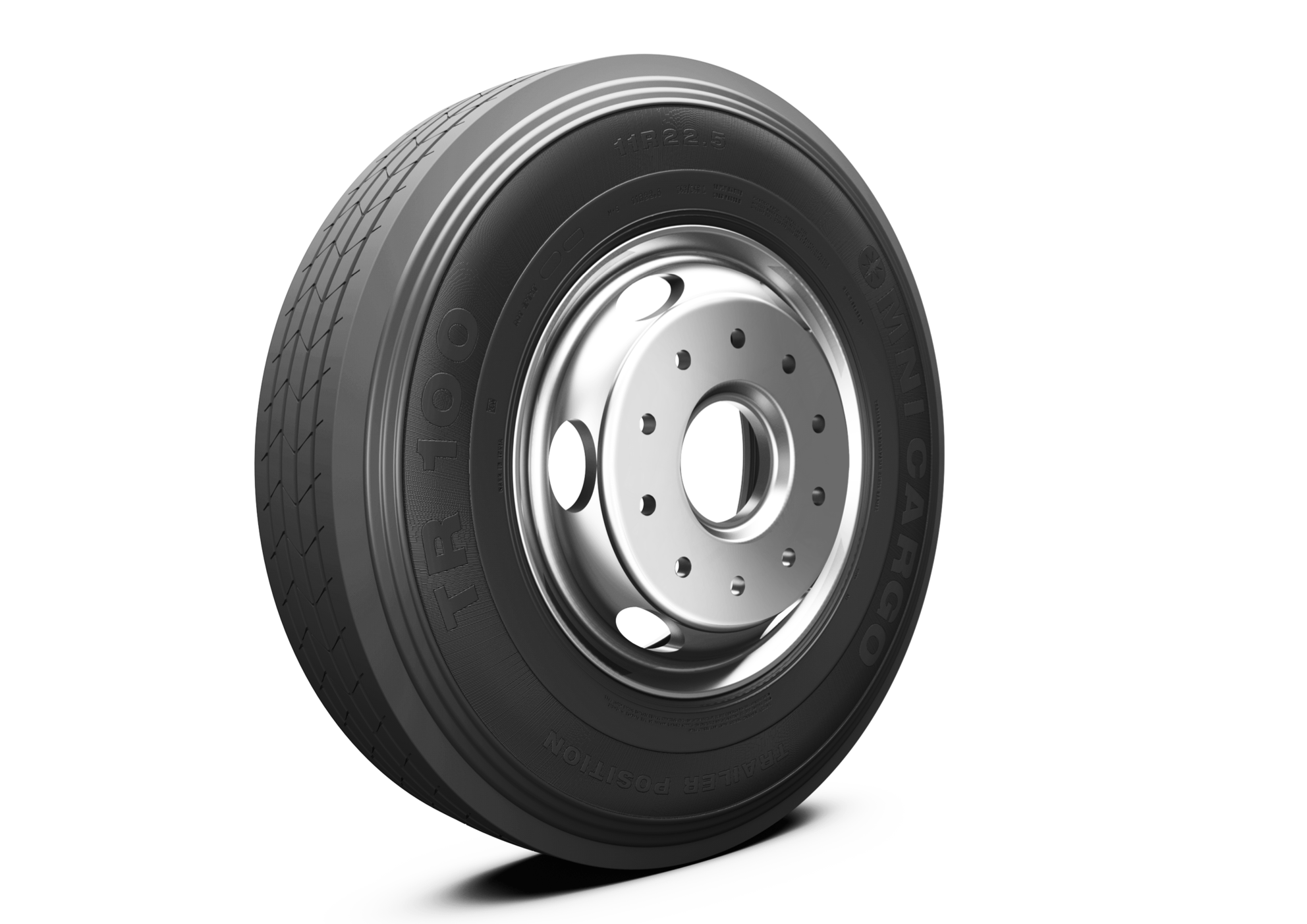

TR 100

The TR 100 is a shallow skid engineered for trailers in urban, regional, and long-haul transportation.

  • Designed and engineered to maximize mileage and reliability
  • Chip/cut compound is suited for high scrub applications
  • Tapered relief arrows on shoulders expel heat and reduce mechanical forces common in high scrub applications

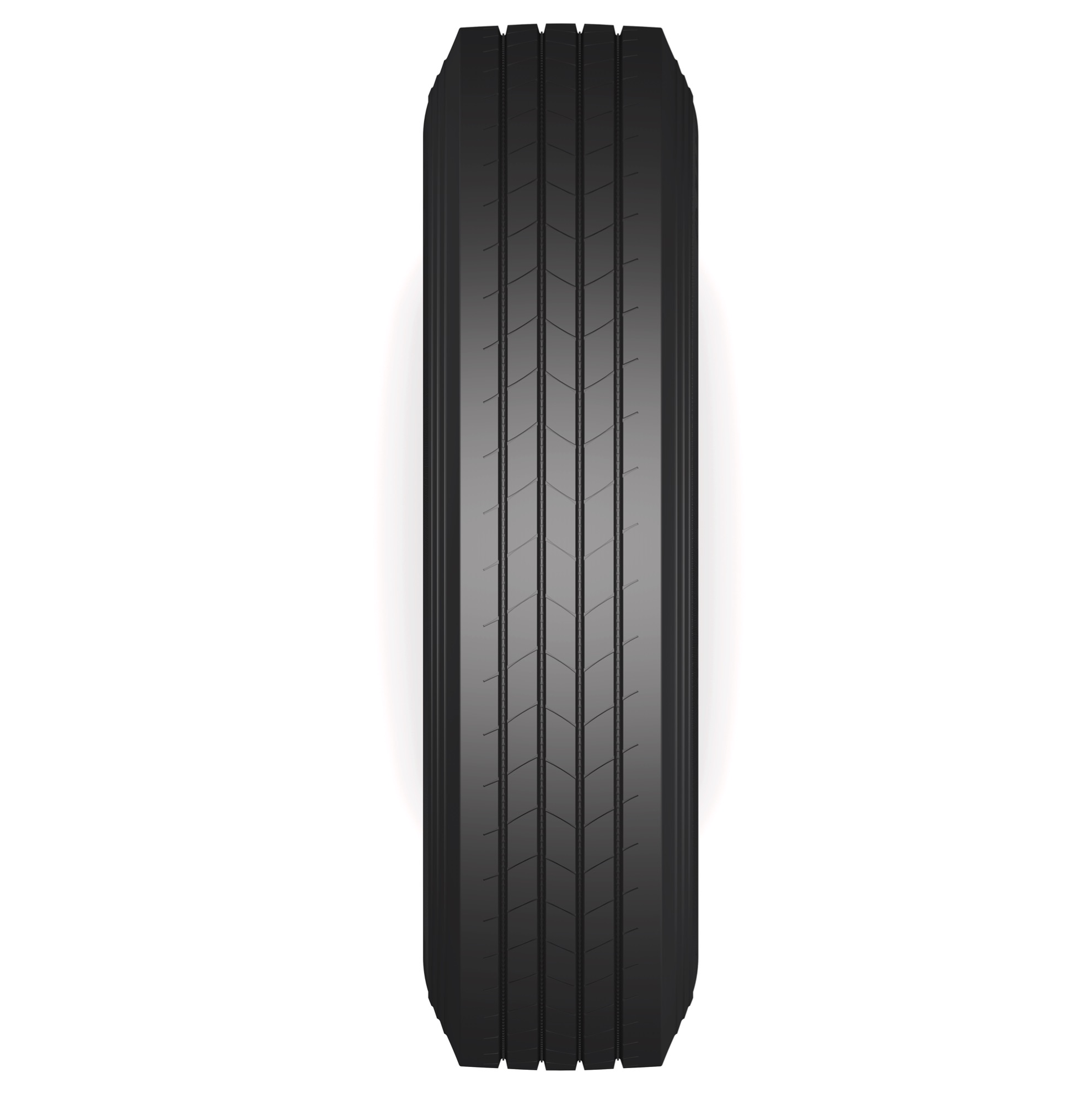

  • Full tread siping to combat irregular wear in this free rolling wheel position
Size TT/TL PLY Load Index
Single
Load Index
Dual
Speed
Rating
Max Load
Single (LBS)
Max Load
Dual (LBS)
Tread Depth
32nds
Overall
Diameter
Section
Width
Rim
Width
Max
PSI
Revs/
Mile
Weight
(Lbs)
Static Load
Radius
Item
Code
11R22.5 TL 16 146 143 L 6610 6005 13 41.0 10.8 7.50 120 494 19.25 OMC9120
11R24.5 TL 16 149 146 L 7160 6610 13 43.0 11.2 8.25 120 470 20.31 OMC9140
295/75R22.5 TL 16 146 143 L 6610 6005 13 39.4 11.5 8.25 120 512 18.58 OMC9130
