TRANSMAX

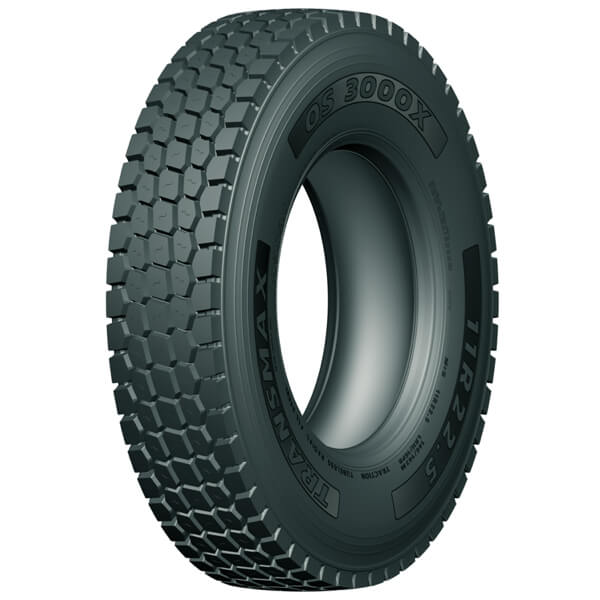

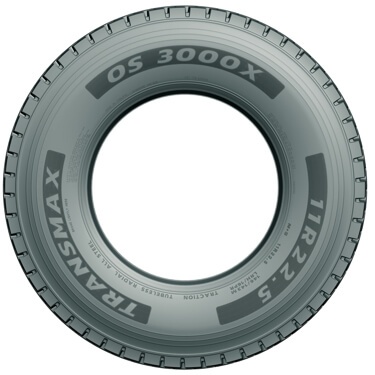

OS 3000X – Open Shoulder Drive

This premium 30/32 open shoulder drive performs exceptionally in a variety of applications and varying road conditions.

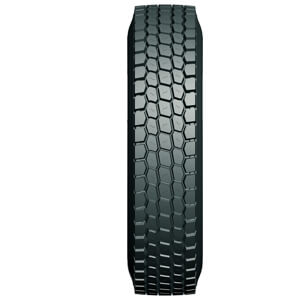

  • An advanced block design offers increased traction and heat dispersion across the entire footprint to support slow, even treadwear and casing integrity for retreadability.
  • The full footprint siping provides excellent water channeling to prevent hydroplaning in the harshest conditions
  • Advanced cap base tread compound offers low rolling resistance for improved fuel economy (Smartway Verification pending)
  • Outer and inner tie bars minimize block distortion, preventing irregular wear.
  • Performs exceptionally in rain, mud, and snow
Size TT/TL PLY Load Index
Single
Load Index
Dual
Speed
Rating
Max Load
Single (LBS)
Max Load
Dual (LBS)
Tread Depth
32nds
Overall
Diameter
Section
Width
Rim Width Max
PSI
Revs/
Mile
Weight
(Lbs)
Static Load
Radius
Item
Code
11R22.5 TL 16 146 143 M 6610 6005 28 41.93 *245/70R19.5 8.25 120 495 125.71 491 TRX9071
11R24.5 TL 16 149 146 M 7160 6610 28 43.94 10.79 8.25 120 473 136.74 516 TRX9076
225/70R19.5 TL 14 128 126 M 3970 3750 18 31.93 8.98 6.75 110 650 69.45 382 TRX9081
285/75R24.5 TL 14 144 141 M 6175 5675 28 41.81 11.14 8.25 110 497 126.02 493 TRX9086
295/75R22.5 TL 14 144 141 M 6175 5675 28 40.39 11.57 9.00 110 514 121.65 474 TRX9091
245/70R19.5 Specification under development
