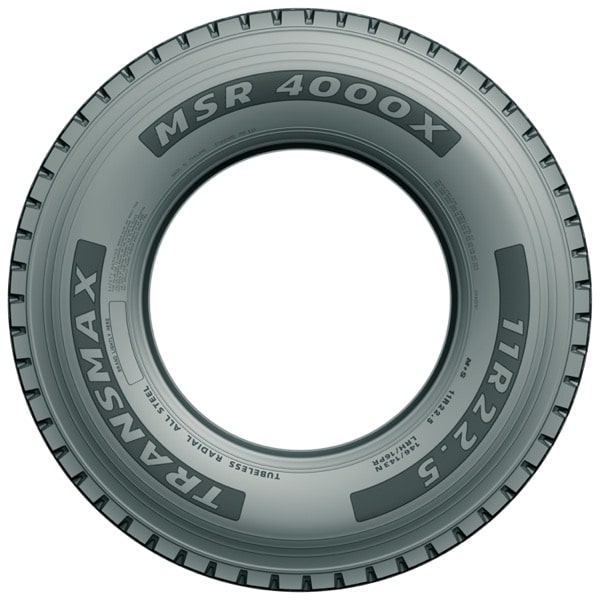

Mixed Service Rib
This premium 28/32 open shoulder drive performs exceptionally in a variety of applications and varying road conditions.

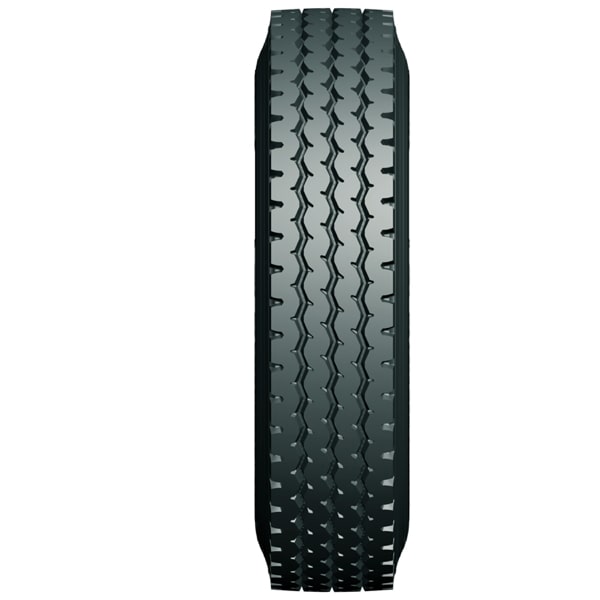

- Modified tread block design offers exceptional traction and stability in various road conditions
- The cut/chip compound and deep tread deliver high traction and driveability in severe conditions while a premium four belt package provides stability on and off highway.
- Stone ejectors in all three channels to protect against stone drill and retention.
- Added shoulder notches offer rugged biting edges for the harshest of terrains.
- Engineered t run cool to protect the integrity on the casing and its retreadability.
| Size | TT/TL | PLY | Load Index Single |
Load Index Dual |
Speed Rating |
Max Load Single (LBS) |
Max Load Dual (LBS) |
Tread Depth 32nds |
Overall Diameter |
Section Width |
Rim Width | Max PSI |
Revs/ Mile |
Weight* (Lbs) |
Static Load Radius |
Item Code |
| 11R22.5 | TL | 16 | 146 | 143 | N | 6610 | 6005 | 21 | 41.50 | 10.94 | 8.25 | 120 | 501 | – | 19.33 | TRX9206 |
| 11R24.5 | TL | 16 | 149 | 146 | N | 7160 | 6610 | 21 | 43.46 | 10.94 | 8.25 | 120 | 478 | – | 20.31 | TRX9211 |
| 255/70R22.5 | TL | 16 | 140 | 137 | N | 2300 | 5070 | 17 | 36.61 | 10.16 | 7.50 | 120 | 567 | – | 17.13 | TRX9216 |
| 275/70R22.5 | TL | 18 | 148 | 145 | N | 6940 | 6395 | 18 | 37.70 | 11.0 | 8.25 | 130 | 535 | – | – | TRX9340 |
| 385/65R22.5 | TL | 20 | 160 | – | M | 9920 | – | 19 | 42.20 | 15.16 | 11.75 | 130 | 492 | – | 19.45 | TRX9251 |
| 315/80R22.5 | TL | 20 | 157 | 154 | N | 9090 | 8270 | 20 | 42.40 | 12.3 | 9.00 | 130 | 476 | – | – | TRX9350 |
| 425/65R22.5 | TL | 20 | 165 | – | N | 11400 | – | 21 | 44.30 | 16.6 | 12.25 | 120 | 455 | – | – | TRX9360 |
