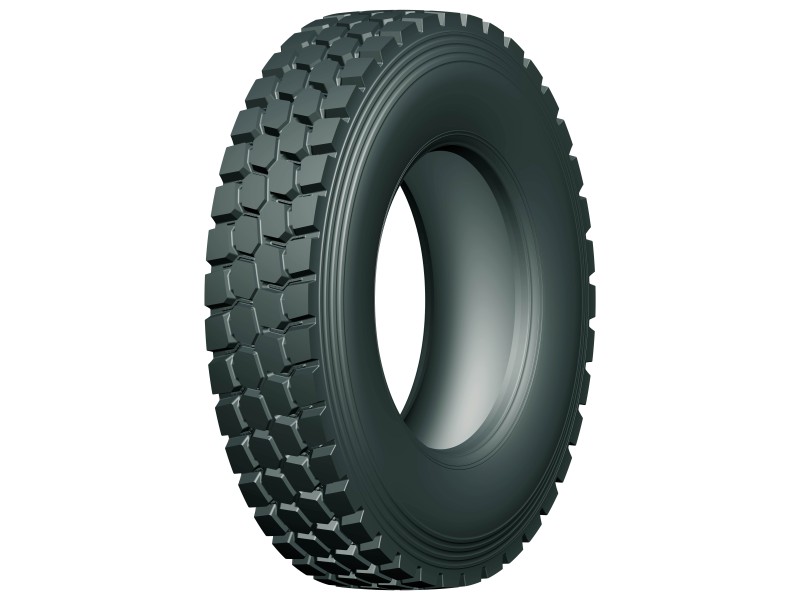

MSD 4000X – Mixed Service Drive
This premium 28/32 open shoulder drive performs exceptionally in a variety of applications and varying road conditions.
- The cut/chip compound and deep tread deliver high traction and driveability in severe conditions while a premium four belt package provides stability on and off highway.

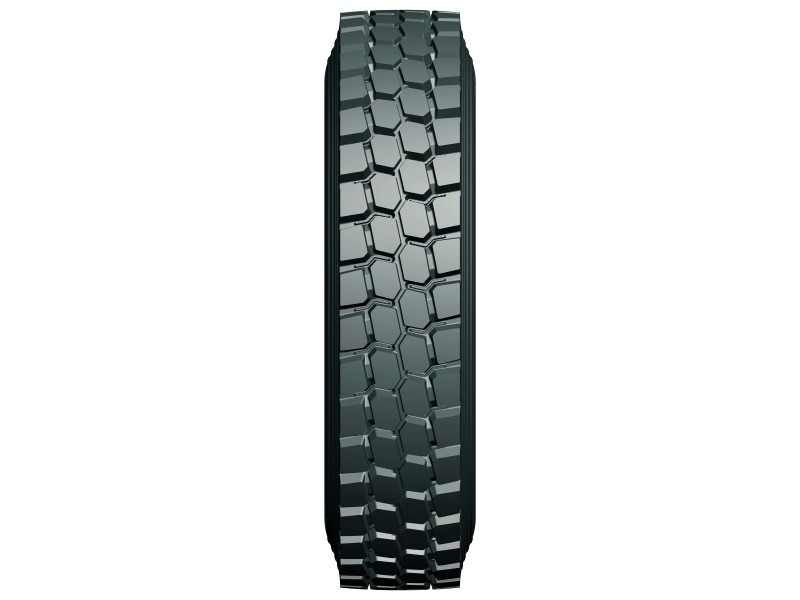

- Staggered 28/32 tread blocks provide excellent traction and stability in severe working conditions
- Strategically placed stone ejectors in a radial direction protect the wide tractional voids between blocks against stone and debris damage while working in the harshest of environments.
| Size | TT/TL | PLY | Load Index Single |
Load Index Dual |
Speed Rating |
Max Load Single (LBS) |
Max Load Dual (LBS) |
Tread Depth 32nds |
Overall Diameter |
Section Width |
Rim Width | Max PSI |
Revs/ Mile |
Weight (Lbs) |
Static Load Radius |
Item Code |
| 11R22.5 | TL | 16 | 146 | 143 | K | 6610 | 6005 | 28 | 42.00 | 11.0 | 8.25 | 120 | 481 | – | 19.33 | TRX9136 |
| 11R24.5 | TL | 16 | 149 | 146 | K | 7160 | 6610 | 28 | 44.00 | 11.0 | 8.25 | 120 | 459 | – | 20.31 | TRX9141 |
