LX-01

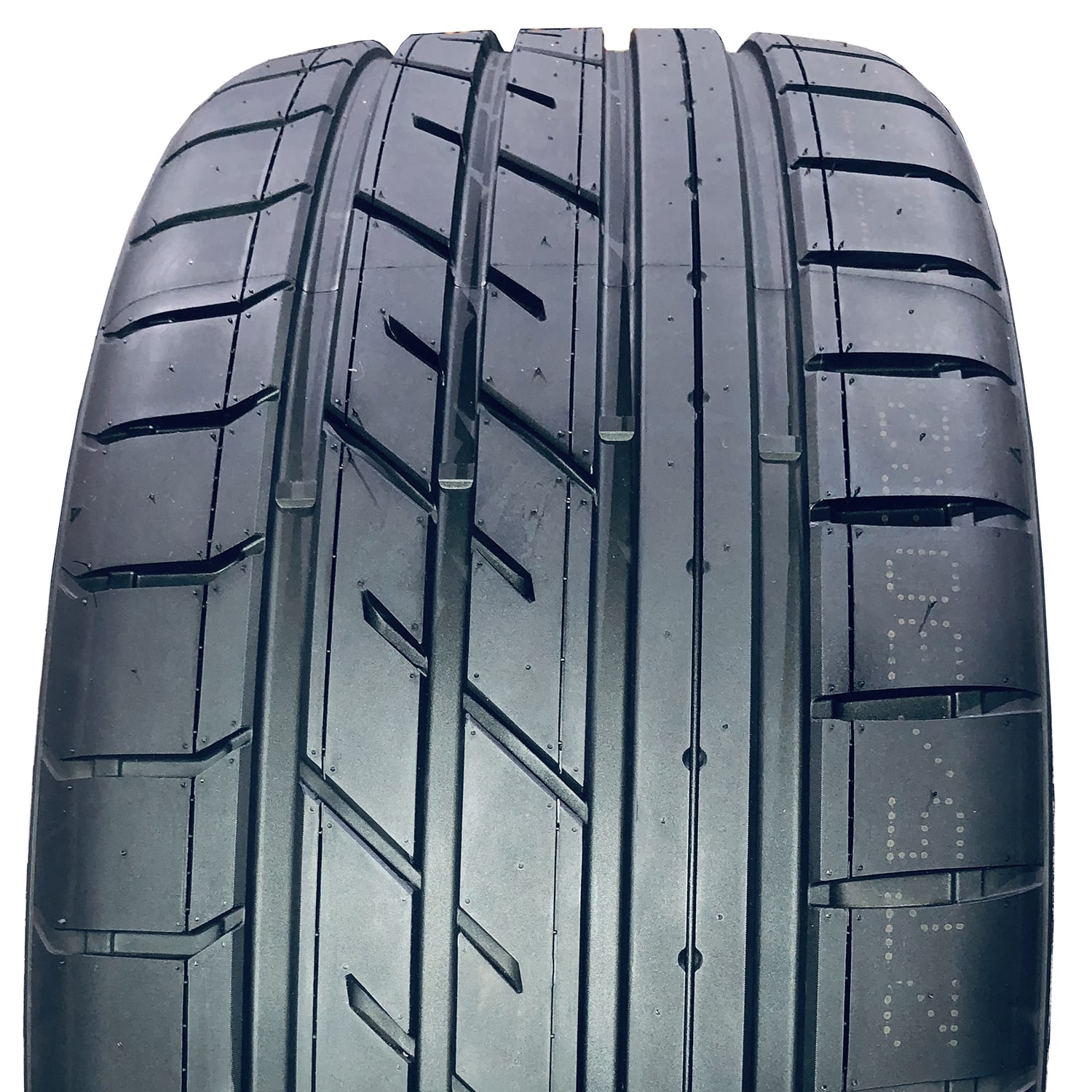

The LX-01 sport truck tire is designed with an asymmetric tread pattern to provide exceptional handling and stability for the larger fitment sizes.
- Optimized pitch sequence reduces tread pattern noise for a quiet ride.
- Large shoulder elements provide tire stability and enhanced control when cornering.
| Size | Service Description | Load/Ply | TT/TL | Sidewall Type | Max Load Single (LBS) | Max Load Dual (LBS) | UTQG Rating |
Tread Depth (32nds) |
Overall Diameter (in) |
Section Width (in) |
Rim Width Min (in) | Rim Width Max (in) | Max PSI | Item Code |
| 265/50R20 | 111V | XL | TL | BSW | 2403 | – | 420-A-A | 10.1 | 30.5 | 10.9 | 8.0 | 9.0 | 49 | LC0630 |
| 235/30ZR22 | 90W | XL | TL | BSW | 1323 | – | 420-A-A | 10.1 | 27.6 | 9.5 | 8.0 | 9.0 | 49 | LC0640 |
| 245/30ZR22 | 92W | XL | TL | BSW | 1389 | – | 420-A-A | 10.1 | 27.8 | 9.8 | 8.0 | 9.0 | 49 | LC0650 |
| 255/30ZR22 | 95Y | XL | TL | BSW | 1521 | – | 420-A-A | 10.1 | 28.1 | 10.2 | 8.5 | 9.5 | 49 | LC0660 |
| 265/40R22 | 106V | XL | TL | BSW | 2094 | – | 420-A-A | 10.1 | 30.4 | 10.7 | 9.0 | 10.0 | 49 | LC0680 |
| 265/35R22 | 102V | XL | TL | BSW | 1874 | – | 420-A-A | 10.1 | 29.3 | 10.7 | 9.0 | 10.0 | 49 | LC0670 |
| 305/45R22 | 118V | XL | TL | BSW | 2910 | – | 420-A-A | 10.1 | 32.8 | 11.9 | 9.5 | 10.5 | 49 | LC0700 |
| 305/40R22 | 114V | XL | TL | BSW | 2601 | – | 420-A-A | 10.1 | 31.6 | 12.3 | 9.5 | 10.5 | 49 | LC0690 |
| 255/30ZR24 | 97W | XL | TL | BSW | 1609 | – | 420-A-A | 10.1 | 30.1 | 10.2 | 8.5 | 9.5 | 49 | LC0720 |
| 275/30ZR24 | 101W | XL | TL | BSW | 1819 | – | 420-A-A | 10.1 | 30.6 | 10.9 | 9.0 | 10.0 | 49 | LC0730 |
| 275/25ZR24 | 96W | XL | TL | BSW | 1565 | – | 420-A-A | 10.1 | 29.4 | 11.1 | 10.0 | 10.0 | 49 | LC0710 |
| 305/35R24 | 112V | XL | TL | BSW | 2469 | – | 420-A-A | 10.1 | 32.4 | 12.3 | 10.5 | 11.5 | 49 | LC0740 |
| 305/30ZR26 | 109W | XL | TL | BSW | 2271 | – | 420-A-A | 10.1 | 33.2 | 12.3 | 10.5 | 11.5 | 49 | LC0750 |
