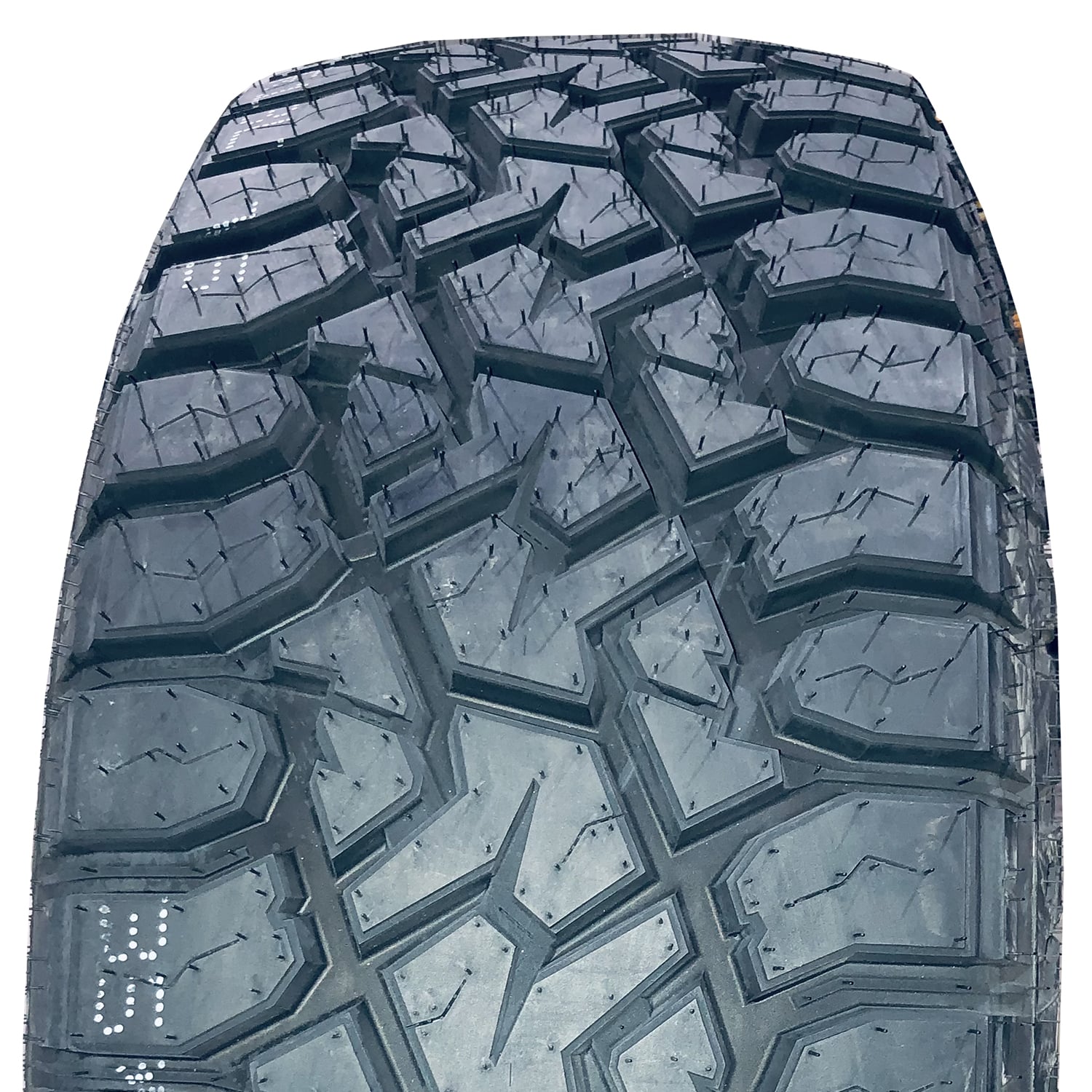

LS-57 RT
The LS-57 R/T is engineered to conquer the rugged off-road adventures and bring you home with excellent on-road handling.
- The specially designed multi-angle tread blocks provide excellent off-road performance in mud, dirt, gravel, and other soft surfaces.
- Integrated stone ejector ribs protect the carcass from stone drilling.
| Size | Service Description | Load/Ply | TT/TL | Sidewall Type | Max Load Single (LBS) | Max Load Dual (LBS) | UTQG Rating |
Tread Depth (32nds) |
Overall Diameter (in) |
Section Width (in) |
Rim Width Min (in) | Rim Width Max (in) | Max PSI | Item Code |
| LT285/55R20 | 122/119Q | 10/E | TL | BSW | 3305 | 3000 | – | 17.0 | 32.6 | 11.7 | 8.5 | 9.5 | 80 | LC1150 |
| 33×12.50R17LT | 120Q | 10/E | TL | BSW | 3085 | – | – | 17.0 | 32.8 | 12.5 | 9.5 | 10.5 | 65 | LC1160 |
| 35×12.50R17LT | 121Q | 10/E | TL | BSW | 3195 | – | – | 17.0 | 34.8 | 12.5 | 8.5 | 11.0 | 65 | LC1170 |
| 33×12.50R18LT | 118Q | 10/E | TL | BSW | 2910 | – | – | 17.0 | 32.8 | 12.5 | 9.5 | 10.5 | 65 | LC1180 |
| 35×12.50R18LT | 123Q | 10/E | TL | BSW | 3415 | – | – | 17.0 | 34.8 | 12.5 | 9.5 | 10.5 | 65 | LC1190 |
| 33×12.50R20LT | 114Q | 10/E | TL | BSW | 2600 | – | – | 17.0 | 32.8 | 12.5 | 9.5 | 10.5 | 65 | LC1200 |
| 35×12.50R20LT | 121Q | 10/E | TL | BSW | 3195 | – | – | 17.0 | 34.8 | 12.5 | 9.5 | 10.5 | 65 | LC1210 |
| 33×12.50R22LT | 109Q | 10/E | TL | BSW | 2270 | – | – | 17.0 | 32.8 | 12.5 | 9.5 | 10.5 | 65 | LC1220 |
| 35×12.50R22LT | 117Q | 10/E | TL | BSW | 2835 | – | – | 17.0 | 34.8 | 12.5 | 9.5 | 10.5 | 65 | LC1230 |
