TRANSMAX

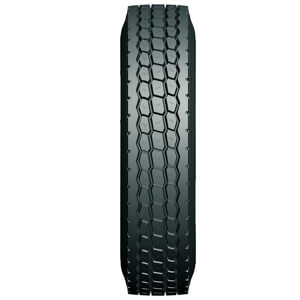

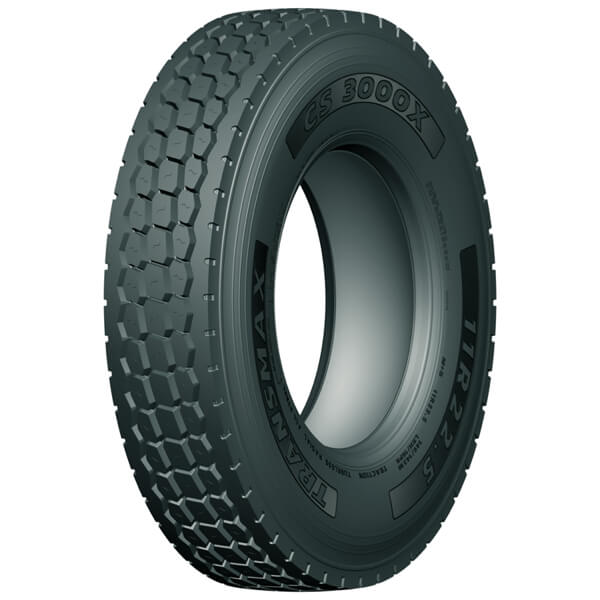

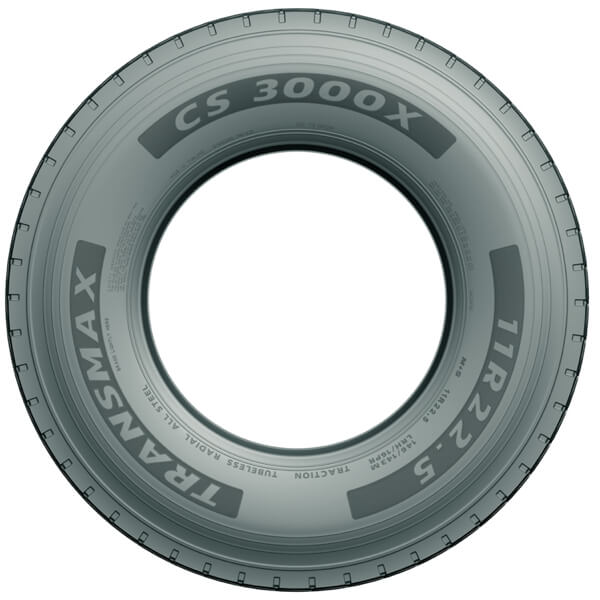

CS 3000X – Closed Shoulder Drive

The CS 3000X is a premium closed shoulder drive tire for regional and long-haul applications. This versatile drive tire outperforms in various types of application.

  • Enhanced siping and wide chevron grooves in the intermediary tread blocks offer exceptional water and material dispersion while the wide solid shoulder ribs provide stability and promote slow even wear
  • Cap base compound to support reduced fuel consumption
  • Advanced cap base tread compound offers low rolling resistance for improved fuel economy (Smartway Verification pending)
  • Smartway verification pending
Size TT/TL PLY Load Index
Single
Load Index
Dual
Speed
Rating
Max Load
Single (LBS)
Max Load
Dual (LBS)
Tread Depth
32nds
Overall
Diameter
Section
Width
Rim Width Max
PSI
Revs/
Mile
Weight
(Lbs)
Static Load
Radius
Item
Code
11R22.5 TL 16 146 143 M 6610 6005 28 41.93 10.79 8.25 120 495 125.71 491 TRX9051
11R24.5 TL 16 149 146 M 7160 6610 28 43.94 10.79 8.25 120 473 136.74 516 TRX9056
285/75R24.5 TL 14 144 141 M 6175 5675 28 41.81 11 14 8.25 110 497 126.02 493 TRX9061
295/75R22.5 TL 14 144 141 M 6175 5675 28 40.39 11 57 9.00 110 514 121.65 474 TRX9066
